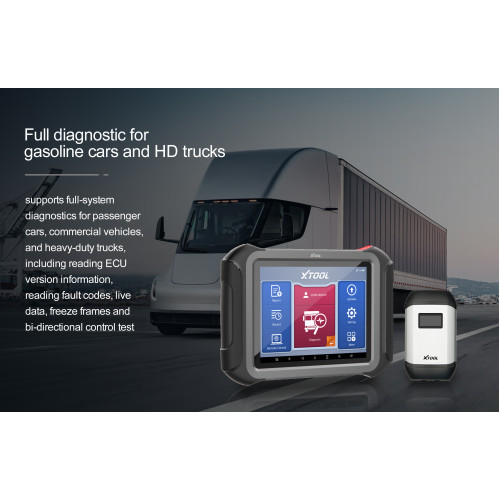

D9HD is an automotive smart diagnostic system designed for mechanics, electricians, and car maintenance shops. It supports full-system diagnostics for passenger cars, commercial vehicles, and heavy-duty trucks, including reading ECU version information, reading fault codes, live data, freeze frames and bi-directional control test. 42 common special functions, such as throttle matching, ABS bleed, maintenance light reset, EPB test, SAS, BMS, injector coding, DPF regeneration, and TPMS reset are supported. Under the system menu, you can also explore a wealth of special functions. 98% vehicle coverage, work on more than 85 brands, 10000 cars.

Parameters

• Operating System：Android 10

• Processor：Rock chip 4 Core 1.80GHz

• Memory：2G RAM, 128 ROM (202207 version)

• Display：9.7 inch capacitive touch screen with 1024×768P resolution

• Communication Method：BT 4.2 | WIFI 2.4/5G

• Connectivity：DB15 TO VAG | USB 3.0

• Camera：Rear camera, 8.0 Megapixel, AF with Flashlight.

• Sensors：Gravity Accelerometer, Ambient Light Sensor

• Auto Input/Output：Microphone, Dual Speakers, 4-Band 3.5 mm stereo/standard headset jack

• Battery：10000mAh, 3.7V lithium-polymer battery

• Working Voltage：3.6 to 4.2V

• Power Voltage：DC 12V

• Working hours：12 hours

• Operating Temperature：-10 to 40℃

• Storage Temperature：-40 to 60℃

• Humidity：<90%

Accessories

• Color Carton
• Quick Start Guide
• Packing List
• Certificate of Quality
• Tool Case
• Desiccant

Main Units

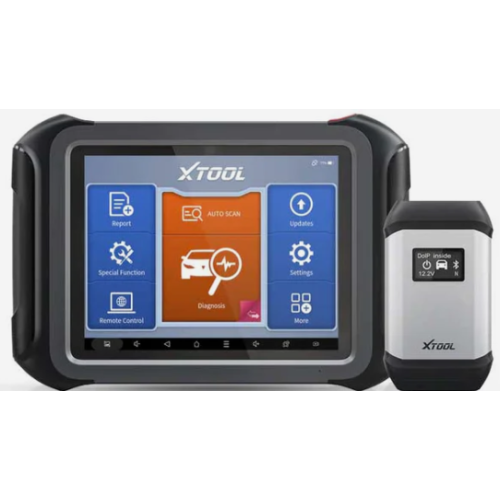

• Tablet
• VCI Box
• USB3.0 Data Cable (Connect to PC)
• Charger for Tablet
• Power Cable US
• Power Cable UK
• Power Cable EU

Test Connectors

• DB15 Main Cable
• DB15 to USB3.0 Main Cable
• Battery Clamp Cable
• Cigar Lighter Cable
• Jumper
• Jumper Adapter
• OBD-R16
• ECONTROLS-4
• WOODWARD-3
• ISUZU-3
• ISUZU-20
• YUCHAI-4
• DENSO-12
• CUMMINS-16
• CUMMINS-9
• HITACHI-4
• HITACHI-6
• CAT-9
• VOLVO-8
• OBD II-16
• HONDA-3
• BMW-20
• BENZ-14
• BENZ-38
• TOYOTA-17
• MAZDA-17R
• KIA-20
• HYUNDAI/KIA-10
• NISSAN-14
• GM/DAEWOO-12
• UNIVERSAL-3
• SUZUKI-3
• FIAT-3
• CITROEN-2
• AUDI-4
• MITSUBISHI-12+16
