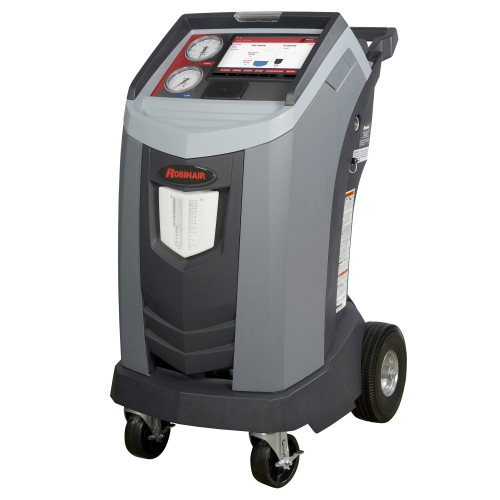

The Robinair AC1234-9 Connected R-1234YF ACS Machine recovers, recycles, evacuates, leak-tests and recharges R-1234yf with improved 98.5% efficiency – unmatched by any competitor. The new design features a large 10" capacitive touch LCD display, and automated features including automatic internal refrigerant refill, oil drain and refrigerant identification. The AC1234-9 also boasts full wireless capabilities for Wi-Fi or Bluetooth® communication, which enables automatic machine software updates and optional refrigerant capacities database downloads, database purchased separately. Use Mopria Print Service wireless printing to print A/C service summary reports for customers or insurance companies. The Android operating system can also export service reports to store or share digitally. The Wi-Fi-capable machine also effectively manages and stores machine metrics and data related to services performed with the ACS machine to include in vehicle service reports.

• Operating Temperature Range

  32° - 120°F (0°-50°C)


  Recovery Performance

  >95% at 70 to 75° F (21 to 24°C) < 30 minutes


  Charge Performance

  +/- 0.5 oz at 70° to 75° F (+/- 15g at 21° to 24° C)


  Voltage

  125 VAC, 60 Hz


  Display

  10" capacitive touch LCD display


  Filter-Drier Capacity

  330 lb (150 kg), spin-on type


  Hose Length

  9 ft (2.75 m)


  Compressor

  3/8 hp, pressure protected, oiled, hermetically sealed


  Vacuum Pump

  1.5 cfm Dual Stage, 29.9 InHg


  Internal cylinder

  30 lb DOT (13.6 kg); 21 lb (9.5 kg) capacity


  Languages

  English, French, Spanish


  Certifications

  SAE J2843, J2927, UL 1963


  Model Number

  AC1234-9


  UPC

  637335047600


  Warranty

  One Year

• AC1234-9 R-1234yf ACS machine
• Calibration Check weight
• Tank fill hose adapter
• User manual
• Extended maintenance flyer
• Service Center Locations listing sheet
• MACs 609 Certification Informational flyer
• MVAC Equipment Certification form
• SDS Sheet - Vacuum Pump Oil
• SDS Sheet - POE Compressor Oil
